VFD EVO6800 Series
EVO6800 Series

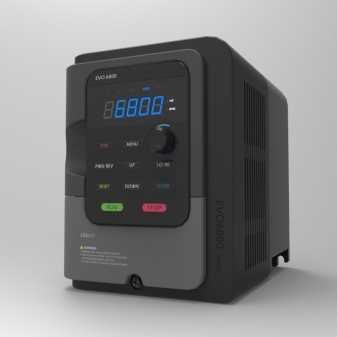

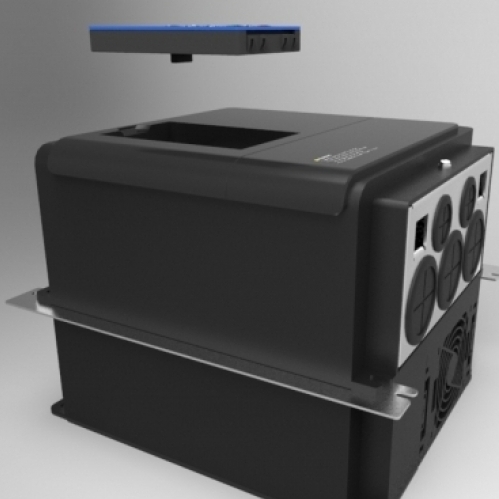

- Full power ranges possess with flange /wall mounting (0.4~110kW)

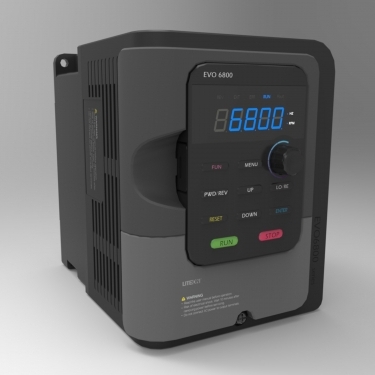

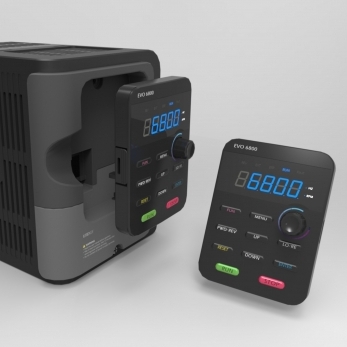

- Standard with LED remote keypad, maximum extend to 200m.
- The improved current overload capabilities make our Drive a better performance during acceleration/deceleration, and overcome more harsh applications.
- The compact design and full power ranges of EVO6800 provides the benefits of space-saving and able to adapt in many different applications and environments.
- All models comply with EU RoHS standard
- Conformity to CE/UL/CUL
Specifications
| Control Method |
| V/F, Sensorless Voltage Vector Control (SVVC) |
| Ouput Frequency |
| 0~400 Hz |
| Frequency Accuracy |
| Digital reference: within ±0.01% of the Max. output freqeuncy |
| Analog reference: within ±0.1% of Max. output frequency (-10℃ to +50℃ ) |
| Frequency Setting Resolution |
| Digital input: 0.01 Hz |
| Analog Output: 1/1000 of Max. frequency |
| Starting Torque |
| 150% / 3Hz(V/F) |
| 150% / 0.3Hz ( IM Sensorless Voltage Vector Control ) |
| Speed Control Range |
| 1: 40 (V/F) |
| 1:100 ( Sensorless Voltage Vector Control ) |
| Speed Control Accuracy |
| ±0.2% in Sensorless Voltage Vector Control |
| Speed Response |
| > 5 Hz in Sensorless Voltage Vector Control |
| Acc / Dec Time |
| 0.0 ~ 6000.0 |
| Braking Torque |
| approx. 20% |
| V/F Pattern |
| 15 fixed and 1 programmable |
| Overload Capacity |
| 120% for 1 min. within every 10 min. (Normal Duty) |
| 150% for 1 min. within every 10 min. (Heavy Duty) |
| Area of Use |
| Indoor without corrosive gas/liquid or flammable gas/liquid/oil mist/dust |
Download
| Document | EVO6800 Quick Start Guide |
|---|---|
| Size | 6 MBytes2016-04-01 Update |
| Type |  |
| Document | EVO6800 User Manual |
|---|---|
| Size | 8 MBytes2015-12-24 Update |
| Type | |
